Technical Specifications

General

• Model: Raivens 8.0

• SKU: RAV-8GPS-01

• Dimensions: 85 × 55 × 20 mm (example — confirm if you have exact dims)

• Weight: 75 g (approx.)

GNSS Performance

• Supported constellations: GPS L1, GLONASS L1, Galileo E1, BeiDou B1

• Sensitivity (Tracking): -167 dBm (typical)

• Sensitivity (Acquisition): -148 dBm (approx.)

• TTFF: Cold start < 28 s (typical), Warm start < 1 s with ephemeris/assistance

• Position accuracy: 2.5–5 m (single point); RTK upgrade for cm-level

Interfaces & Protocols

• Serial: UART (TTL), USB (optional)

• Output protocols: NMEA-0183 (GGA, GLL, RMC, VTG, GSA, GSV), UBX/Binary (if applicable)

• Baud rate: 4800 / 9600 / 115200 (configurable)

• PPS output for timing applications (if present)

Antenna & Power

• Antenna: External active antenna supported (SMA connector) / Integrated antenna variant available

• Power supply: 3.3V – 5.5V DC (check exact model)

• Power consumption: Typical 45 mA @ 3.3V (spec depends on configuration)

Environmental

• Operating temperature: -40°C to +85°C (industrial grade)

• Storage temperature: -55°C to +95°C

• IP rating: (if ruggedized model — specify)

Certifications & Compliance

• CE / RoHS (specify exact certifications if available)

What’s in the Box

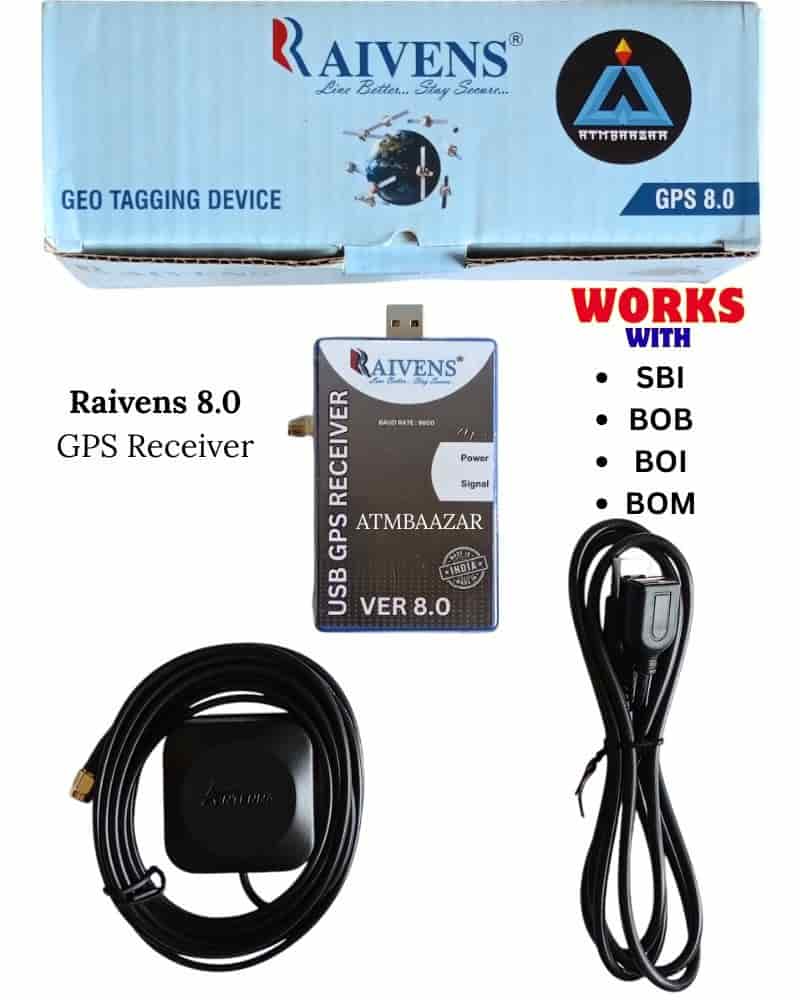

• 1 × Raivens 8.0 GPS Receiver unit

• 1 × External active antenna (if variant includes) or SMA cap (variant-dependent)

• 1 × USB to TTL adapter cable (if USB model)

• 1 × Quick Start Guide & Safety sheet

• Mounting screws and adhesive pad (if included)

(Note: exact box contents depend on chosen kit / variant — please confirm if you have a specific accessory bundle.)

Detailed Description

Raivens 8.0 combines modern multi-constellation GNSS technology with a compact, rugged design to deliver reliable positioning in challenging environments. Designed for fleet tracking, telematics, surveying aids, IoT gateways and timing applications, the Raivens 8.0 uses advanced signal processing to maintain fixes under forest cover, urban canyons and weak-signal conditions.

Engineers will appreciate the flexible interface options (UART/USB, NMEA output), easy firmware updates, and support for assisted-GNSS to dramatically reduce TTFF. For customers requiring higher precision, Raivens 8.0 supports RTK-ready upgrades providing centimeter-level accuracy when used with an RTK base or correction service.

The unit is built for field durability — wide temperature tolerance and optional sealed housings make it suitable for vehicle installations and outdoor deployments.

Applications / Use Cases

• Vehicle & fleet tracking systems

• Asset tracking for logistics and cold chain

• Surveying & mapping (with RTK upgrade)

• Timing & synchronization (PPS output)

• Agriculture precision tools & machinery guidance

• IoT gateways and telematics devices

Installation & Integration Notes (Quick)

1. Mount the unit with antenna in a position with clear sky view for best signals.

2. Connect power (3.3–5.5V) and chosen comms interface (UART/USB).

3. Configure baud rate and output sentences (NMEA) via supplied config tool or commands.

4. For vehicle installations, use external active antenna mounted on roof for improved reception.

5. For RTK/precision use, connect correction input (NTRIP/RTK) per firmware instructions.

FAQs

Q: Does Raivens 8.0 support RTK?

A: The base Raivens 8.0 supports multi-constellation single-point positioning. RTK-ready firmware/upgrade is available for models requiring centimeter-level accuracy — contact us for RTK options.

Q: What protocols are supported?

A: NMEA-0183 standard sentences and common binary/UBX-style protocols (model-dependent). UART and USB connectivity available.

Q: Is an external antenna required?

A: The device can work with an integrated antenna (in variant A), but for best performance in vehicles and obstructed environments we recommend using the external active antenna.

Warranty & Support

• Standard Manufacturer Warranty: 12 months (confirm exact warranty period if different)

• Repair / Replacement: Carry-in or on-site options available (depending on region).

• Support: Technical support for installation and configuration provided by Dhairya Enterprises.

❓ Frequently Asked Questions (FAQ)

🔐 1. What is Raivens 8.0 GPS Receiver – Geo Tagging Device?

It is a USB-based GPS receiver device used for geo-tagging, Aadhaar authentication, and CSP/banking location verification.

📍 Available across India – Delhi, Mumbai, Kolkata, Chennai, Bangalore, Hyderabad & all major cities

📡 2. What is this device mainly used for?

It is widely used for:

✔ Aadhaar Enrollment Centers

✔ Banking CSP (SBI, BOB, BOI, etc.)

✔ Geo-tagging verification

✔ Government & field operations

🏢 Trusted across India for biometric & banking setups

🔧 3. Is this an original device?

Yes ✅

It is an original Raivens GPS 8.0 device with high accuracy and reliable performance

✔ Trusted supplier across India

🆔 4. Is it Aadhaar / UIDAI compliant?

Yes 👍

✔ Supports Aadhaar-based applications

✔ Compatible with CSP & UIDAI systems

📍 5. How accurate is this GPS device?

✔ Accuracy up to ~1.8 meters (ideal conditions)

✔ High sensitivity up to -163 dBm for better signal tracking

⭐ Reliable for precise geo-tagging across India

⚙️ 6. Is installation easy?

Yes 👍

✔ Plug & Play (USB connection)

✔ Works with laptop/desktop

🛠️ Setup guidance available

💡 7. Does it require software or drivers?

Yes 📥

✔ Works with Aadhaar / CSP software

✔ May require driver or SDK setup depending on system

🌐 8. Where can I buy this product?

You can contact us directly or find listings on:

• Justdial
• TradeIndia
• Google Shopping

📍 Best supplier across India with direct support & better pricing

📦 9. Is this new or refurbished?

• Condition: Brand New

  📍 Ready stock available – ships all over India

🛡️ 10. What is the warranty?

• 1 Year Manufacturer Warranty (model dependent)

  🤝 Serving 10,000+ customers across India

🚚 11. Delivery available?

✔ Metro Cities: 2–4 Days

✔ Other Locations: 3–7 Days

✔ Pan India Shipping Available

💰 12. Is COD available?

Yes 💵

COD + Prepaid options available

📞 13. How to order?

📞 Call: 9584450043

💬 WhatsApp: 9827909234

🌐 Website: dhairyaenterprisesindia.com

⚠️ Important Notice

We do not support IndiaMART. Contact Dhairya Enterprises directly for authentic products, best price, and reliable support across India.
